The fleet

The vehicles, and what each one carries.

Three road classes and one machine that never leaves the yard. Every figure below is either a ceiling set by Malaysian law or a manufacturer’s figure for the class — and it says which.

The yard

Scania 380 prime mover coupled to a tri-axle curtain-side trailer, under the yard canopy at sunset
Scania 380 4-series 6×2 + tri-axle curtain-sider

Eight frames, and every vehicle on this page is in one of them.

Supplied by the yard, not licensed from a stock library. The plates and the operating names are legible, which is the point — you can check the ones below against what turns up.

Colour-corrected, and the generator badge each frame arrived with has been painted out. Nothing has been added to or removed from any vehicle. Credits

Tap any frame for the full picture — two of the eight are portrait and the sheet crops them.

Which lorry carries my load

OKAYA's Scania 380 prime mover coupled to a tri-axle curtain-side trailer, under the yard canopy.
OKAYA’s own yard

Curtain-side haulage

Palletised and general cargo on a Scania 380 6×2 prime mover pulling a tri-axle curtain-sider. Loaded and unloaded from the side by forklift.

DECK
40 ft. Malaysia caps a semi-trailer at 12,500 mm, so 40 ft fits and 45 ft does not.
AXLES
1 steer + 2 tractor rear + 3 trailer.
GVW
Combination BDM at a wheelbase of 13.1 m or more. Weight Restrictions (Federal Roads) Order 1989, List I, 1:2:3.
PAYLOAD
40 t ceiling at an 11 m wheelbase, less roughly 15–16 t of tractor and trailer tare. The registered figure is BDM − BTM off the vehicle’s own card.
LOADING WIDTH
Curtain-side haulage
The Mercedes SK prime mover on the flatbed work, photographed in the yard at dusk.
OKAYA’s own yard

Flatbed and low-bed haulage

Machinery, steel and oversize on an open deck. A flatbed can be crane-loaded from above and the load may overhang the deck edge; a curtain-sider, which has a rigid frame and roof, can do neither. For tracked plant and anything over height, the low-bed drops the deck to clear the bridges.

DECK
40 ft. A 20 ft variant runs 7.2 m.
AXLES
4×2 tractor + tri-axle semi.
GVW
Combination BDM at a wheelbase of 11.1 m or more. List I, 1:1:3.

Operated by HARI SINGH MALWA

Flatbed and low-bed haulage
OKAYA's Mitsubishi Canter dropside, plate WCV 2771, sides up, parked under the yard canopy.
OKAYA’s own yard

Dropside haulage

A rigid lorry with hinged sides that fold flat. Building materials, drums, crates, bagged goods and small plant — anything that has to be loaded or unloaded over the side rather than through a tail, on a job too small to warrant a trailer.

Figures to confirm. A lift capacity without its radius is not a simplification — it is a different and wrong number — so neither is published until both are.

Dropside haulage
OKAYA's Fuso baby crane, plate WGE 3033, boom stowed over the deck under the yard canopy.
OKAYA’s own yard

Baby crane

Self-loading delivery for smaller construction jobs. The lorry carries its own crane behind the cab, so nothing is needed at your end — no forklift, no gantry, no second machine hired for the morning. It is a lorry that lifts its own load on and off, not a crane: when the lift itself is the job, the mobile crane is the machine.

Figures to confirm. A lift capacity without its radius is not a simplification — it is a different and wrong number — so neither is published until both are.

Baby crane

Side by side

Deck length, axle count, weight ceiling and payload by vehicle class
FigureCurtain-side haulageFlatbed and low-bed haulageDropside haulageBaby crane
DECK12.19 m12.19 mNot publishedNot published
AXLES65Not publishedNot published
GVWup to 44 tup to 39 tNot publishedNot published
PAYLOADup to 24 tNot publishedNot publishedNot published

Blank means not published, not zero. Payload is a unit figure — BDM − BTM off a specific lorry’s registration card — and it is painted on the cab where a customer standing in the yard can read it.

Plant — not a service line

XGMA XG932 wheel loader

A yard and bulk-handling machine, not an earthmover. It is what makes receiving, stockpiling, re-handling and loading-out a service rather than a parking arrangement.

RATED LOAD
BUCKET
OPERATING WEIGHT
DUMP HEIGHT
BREAKOUT

Buckets and grapples and forks together are the signature of a machine that moves material around a yard, not one that digs virgin ground. It is roughly a Komatsu WA200-8. It is what makes STORE a capability rather than a decorative verb — and it evidences handling, not covered area, racking, security or insured storage. Those are still open.

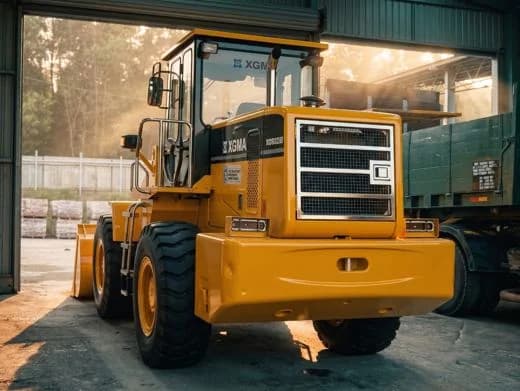

XGMA XG932 wheel loader with the bucket down, standing on the yard apron
XGMA XG932 wheel loader

The network

Some of these are run by partners, and they are named.

OKAYA works with two partners. Their lorries are in these photographs because they run alongside ours, not because somebody else’s vehicle wandered into frame.

GS CRANE on the lifting, and HARI SINGH MALWA on the haulage.

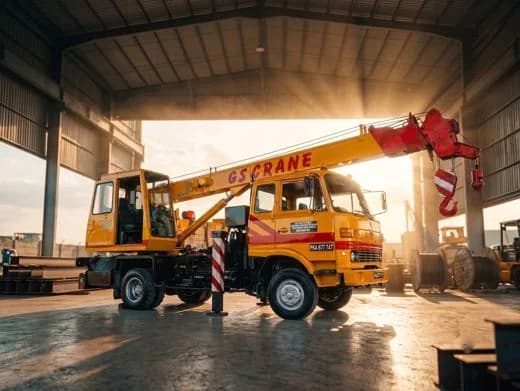

Nissan truck-mounted telescopic crane with the boom deployed, GS CRANE painted along the boom
Nissan/UD truck-mounted telescopic cranePKA · GS CRANE

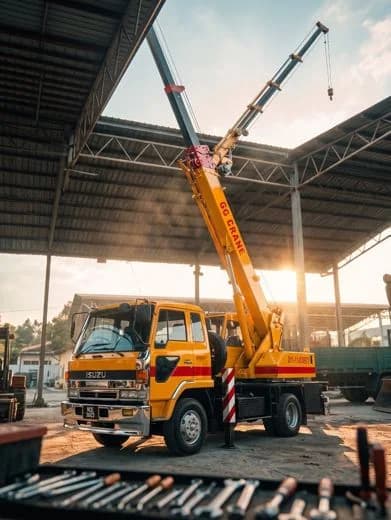

Isuzu truck-mounted telescopic crane with the boom raised, photographed against the shed roof
Isuzu truck-mounted telescopic craneGS CRANE
Mercedes-Benz SK prime mover in red, coupled to a dropside trailer, run by HARI SINGH MALWA
Mercedes-Benz SK prime mover + dropside trailerHARI SINGH MALWA

Operating names, as painted on the cabs.
